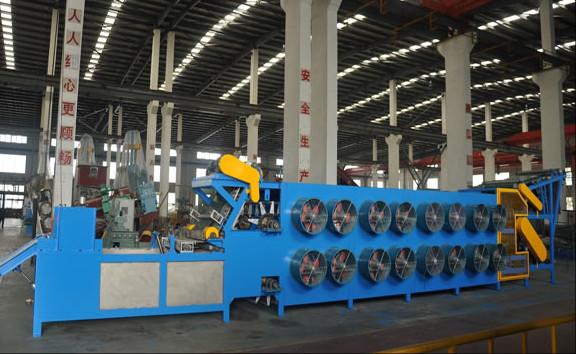

High Efficient Batch Off Cooler Quick Rubber Sheet Cooling Machine 21kw 25kw

Description:

The batch-off cooler is usually paired with internal mixers, rubber roll-head extruders or rubber sheeting mills. The rubber cooler dips rubber sheet in liquid where it is cooled and then dried. The sheets are then transported and piled on the batch-off cooler.

Technical Parameters:

Parameter/modelXPG-600XPG-900
Speed (m/min)~30~40
Sheet thickness (mm)4-156-12
Sheet width (mm)600800
Max capacity (kg)3001500
Rubber hanging height (mm)14001400
Distance between hanging rod (mm)127106
QTY of cooling fan1218
Cooling fan power (KW)0.750.75
Cooling fan blowing capacity (m³/h)53005300
Rubber sheet temperature (ºC)≤40≤40
Total power (KW)2125
Weight (kg)55007500
